MOZA CRP2 Load Cell Pedals

Product details

Construction and configurations

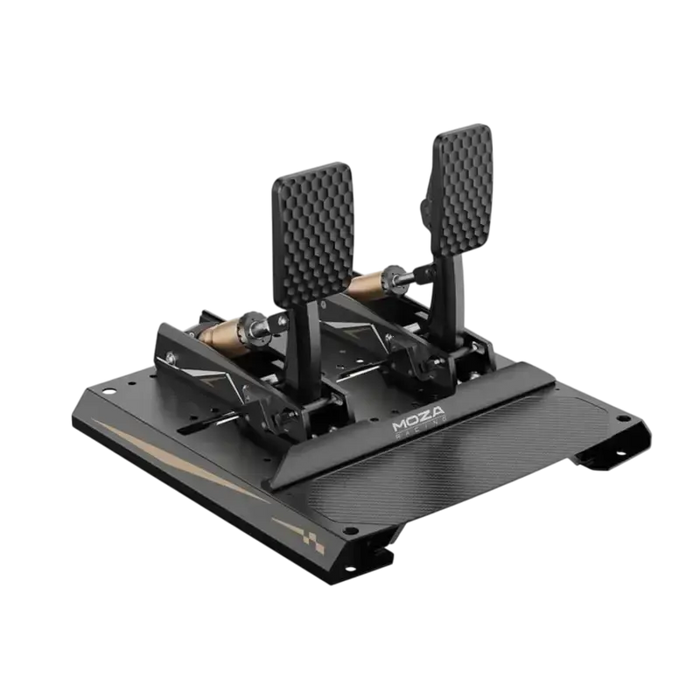

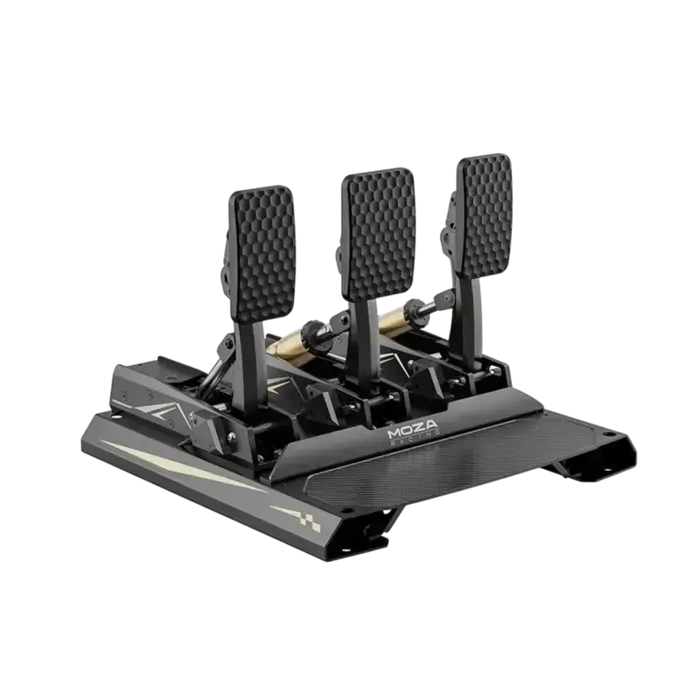

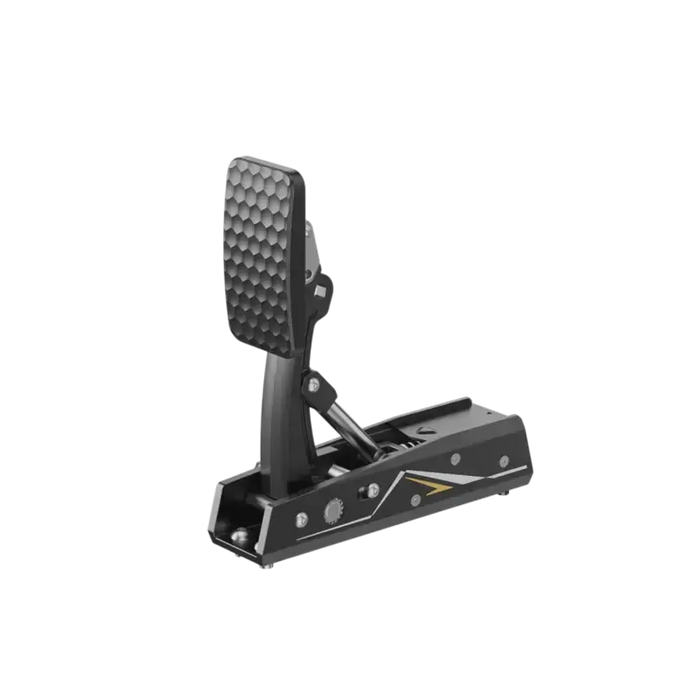

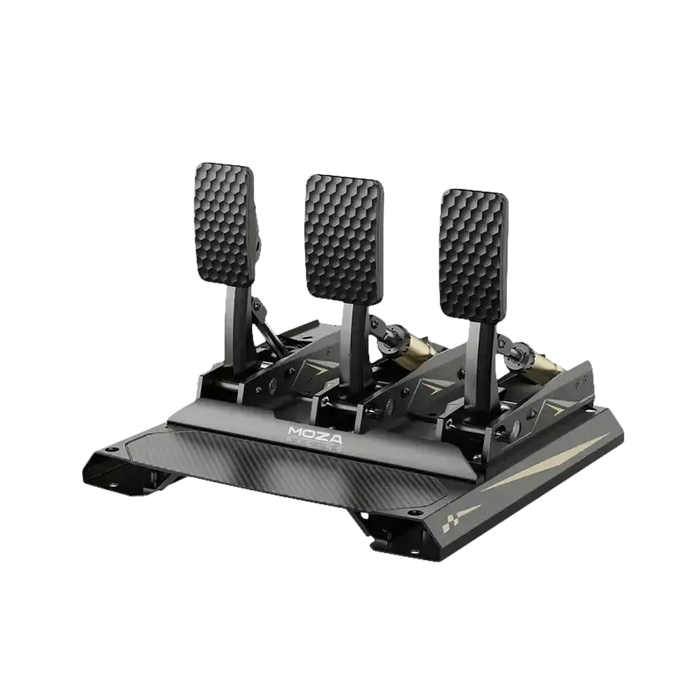

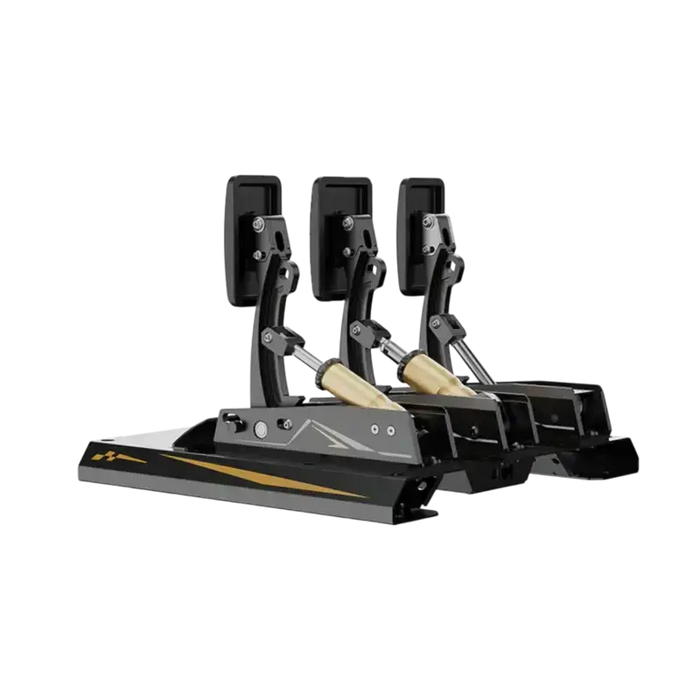

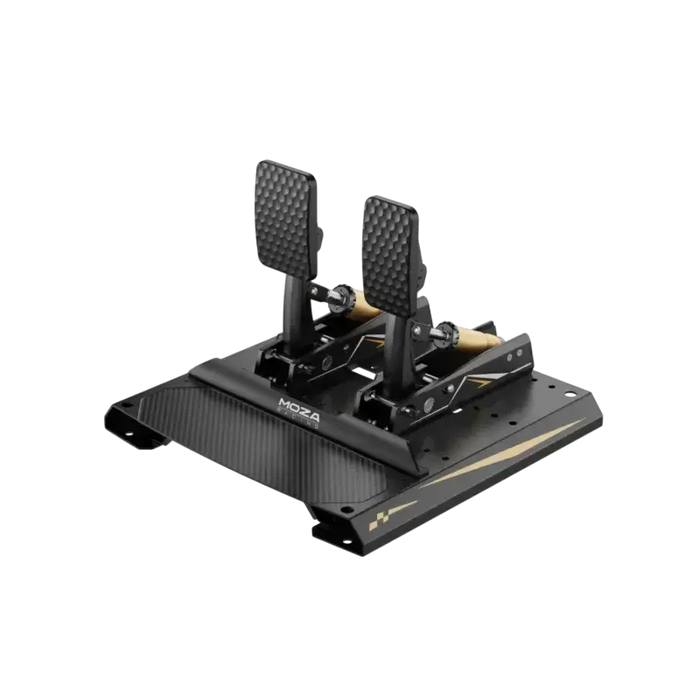

The CNC aluminium pedal bodies mount to a steel base with a carbon-fibre heel plate. Choose throttle and brake, or add the CRP2 clutch for a three-pedal setup. The optional clutch uses a progressive three-stage feel with adjustable spring resistance.

Brake sensing and adjustment

The brake uses a 0–200 kg load cell and 15-bit magnetic angle sensor. Brake travel is 15–20°, throttle travel is 15–23°, clutch travel is 15–25° and pedal-angle adjustment is 0–15°. Pedal-face height and footrest position can each be adjusted by up to 30 mm. MOZA’s current CRP2 product page contains conflicting totals for the standard brake-feel combinations, so no standard combination count is stated here.

Mounting, software and upgrades

MOZA publishes an official CRP2 mounting diagram for comparison with third-party cockpit or pedal-plate holes. Pit House handles calibration and curves. The optional MOZA Brake Performance Kit for CRP2 & SRP2 expands mechanical tuning to 1,764 configurations, while the MOZA CRP2 Inversion Kit provides an inverted mounting arrangement. Both are sold separately.
