A complete 6 Nm direct-drive PC bundle with a compact R5 Pro wheel base, 280 mm ES Lite wheel and adjustable SR-P Lite2 pedals.

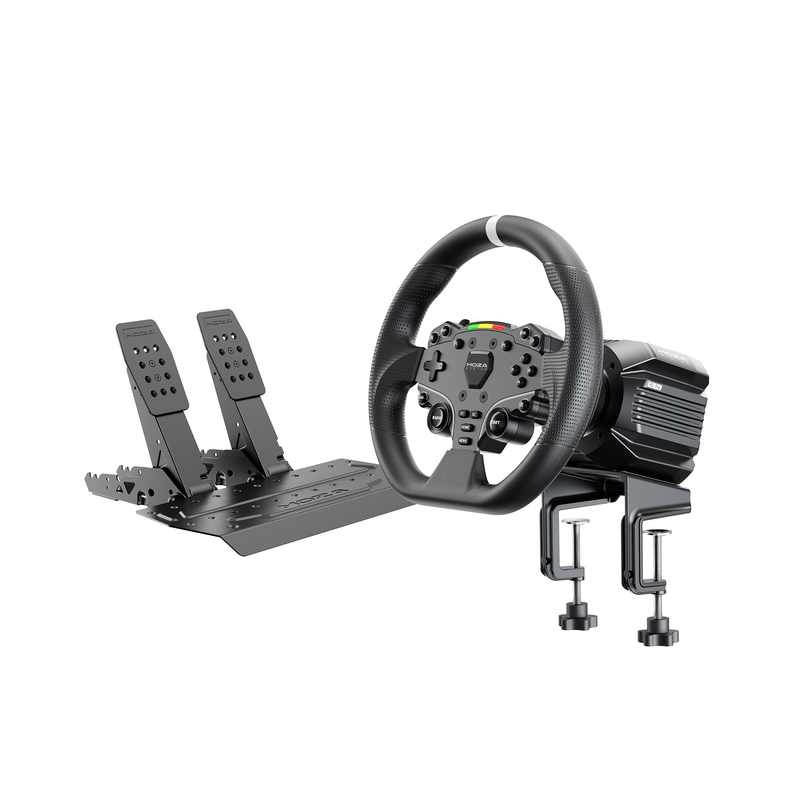

The MOZA R5 Pro Racing Simulator combines the R5 Pro Direct Drive Wheel Base, ES Lite Steering Wheel, SR-P Lite2 throttle and brake pedals and a desk clamp. The upgraded base uses a 21-bit magnetic encoder, a 600 MHz processor and MOZA NexGen Force Feedback 5.0. Alongside the standard hardware specifications, MOZA highlights advanced functions such as 360 Hz iRacing force feedback, Wheel LFE, force-feedback interpolation, game-FFB decoupling, intelligent temperature control and mobile-app configuration.
Why choose the MOZA R5 Pro bundle?
- The 6 Nm direct-drive system, 21-bit encoder and 1000 Hz USB refresh rate provide detailed steering input and smooth torque delivery without belts or gears.
- The matched wheel, pedals and desk clamp form a ready-to-configure PC setup, while Pit House supports profiles, advanced force-feedback tuning, pedal curves and firmware updates.
Bundle components

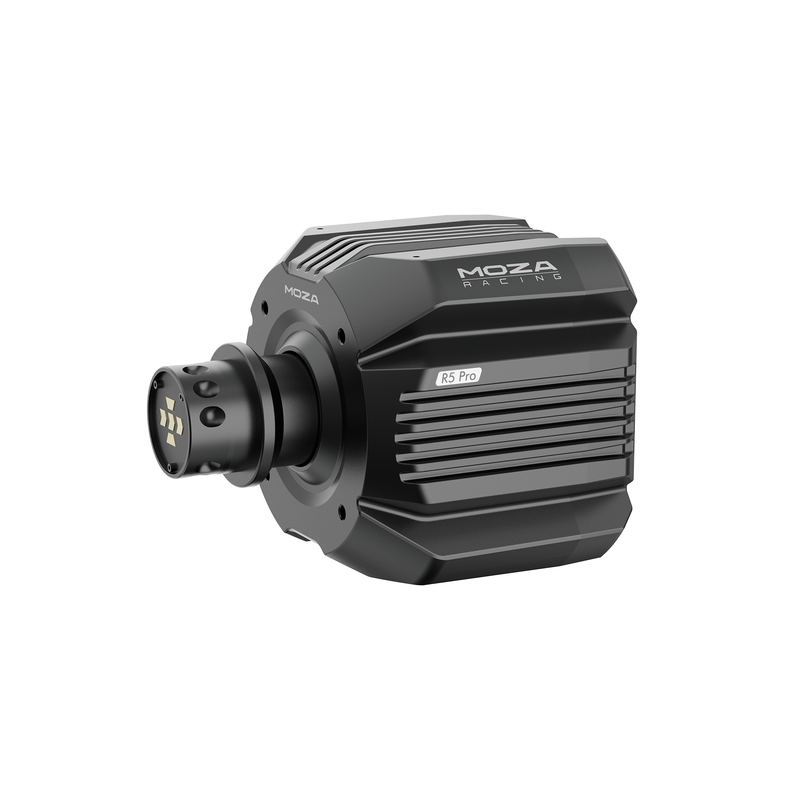

R5 Pro Direct Drive Wheel Base
The R5 Pro delivers a peak torque of 6 Nm and a peak power rating of 100 W. Its 21-bit magnetic encoder provides more than two million steering positions per revolution, while the 600 MHz high-performance processor manages the feedback calculations. The wheel rotation can be set between 90 and 2700 degrees and the USB refresh rate is 1000 Hz. MOZA NexGen Force Feedback Algorithm 5.0 is designed to improve detail, smooth transitions and the separation of individual vehicle effects.
MOZA presents the base as a compact solution for desks, smaller wheel stands and full cockpits. The housing uses high-strength die-cast aluminium alloy and the base itself weighs approximately 2.9 kg. Input power is specified as 110–220 V AC converted to 12 V DC. The connection panel provides ports for power, USB, pedals, dashboard, shifter, handbrake and an emergency-stop switch. Bottom, front and desktop mounting are supported, and the desk clamp is included.
Advanced force-feedback functions
The official technical imagery adds several functions that go beyond the basic torque specification. Native iRacing integration supports 360 Hz high-frequency force feedback and Wheel LFE. Force-feedback interpolation can smooth the transition between adjacent feedback samples, helping to reduce abrupt steps while retaining road texture and kerb detail. Game FFB Decoupling separates the incoming game signal into individually adjustable components, so the response can be tuned more precisely.
Intelligent temperature control uses real-time monitoring and active thermal management to maintain stable operation under sustained load. MOZA Pit House provides the main configuration interface, while the supported mobile app allows compatible settings to be changed without remaining at the PC.

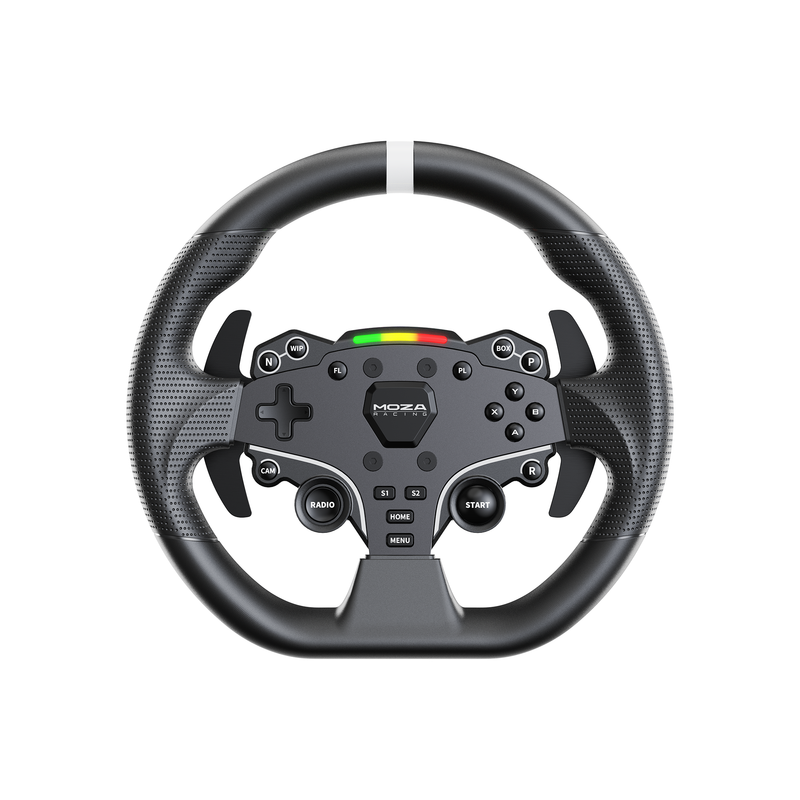

ES Lite Steering Wheel
The included ES Lite has a 280 mm diameter, TPE grips and an aluminium-alloy frame. The shift paddles are also aluminium alloy. Twenty-two programmable inputs provide access to common vehicle, menu and camera functions. Ten top-mounted RGB LEDs support intelligent telemetry, and their RPM behaviour can be configured in MOZA Pit House. The all-aluminium quick release attaches directly to the supplied R5 Pro base, so no separate hub is required for the components in this bundle.

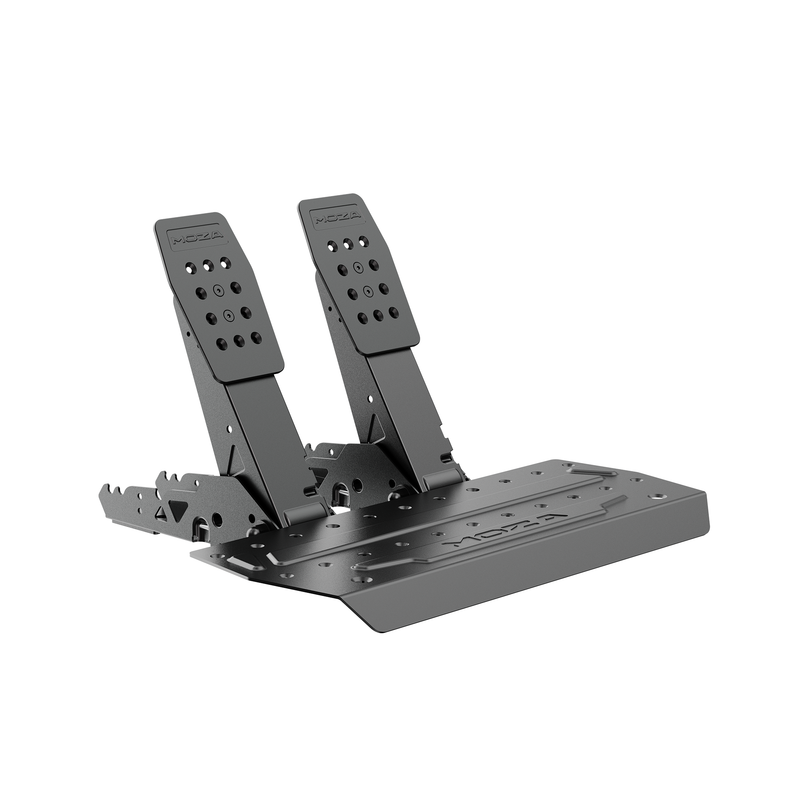

SR-P Lite2 Pedals
The SR-P Lite2 set contains throttle and brake pedals with high-strength steel pedal faces and bases. Contactless Hall sensors measure pedal movement without a conventional contact potentiometer. The pedal faces can be moved 15 mm to the left or right and adjusted through a 36 mm height range. Pit House supports pedal-curve adjustment and real-time pedal-output monitoring. The matching clutch pedal, brake performance kit and throttle or clutch performance kit are optional and are not included.
MOZA ecosystem and software
The integrated connection ports allow supported MOZA pedals, dashboards, shifters, handbrakes and an emergency-stop switch to connect to the wheel base without a separate USB hub. MOZA Pit House is used for calibration, steering angle, force-feedback profiles, effect equalisation, pedal curves, input testing and firmware management. Online firmware updates are supported.
Which games and platforms are supported?
Platform: Windows PC. The official product information does not claim PlayStation or Xbox compatibility for this bundle.
Officially listed game examples: MOZA publishes a partial compatibility list including iRacing, Le Mans Ultimate, Assetto Corsa, Assetto Corsa Competizione, Assetto Corsa EVO, Forza Motorsport, Forza Horizon 4, 5 and 6, RaceRoom Racing Experience, F1 2018 through F1 25, KartKraft, rFactor 2, Assetto Corsa Rally, DiRT Rally 2.0, DiRT 4, EA SPORTS WRC, WRC 9, WRC 10, WRC Generations, Richard Burns Rally, Automobilista 2, Live for Speed, Project CARS 1–3, Project Motor Racing, BeamNG.drive, Euro Truck Simulator 2, American Truck Simulator, Farming Simulator 22, Farming Simulator 25 and Test Drive Unlimited Solar Crown.
Game detection, telemetry support and available force-feedback functions can differ by title. Complete the MOZA Pit House setup and the in-game steering, pedal and force-feedback calibration for the selected simulator.
Specifications
Drive system
Direct drive
Peak torque
6 Nm
Peak power
100 W
Processor
600 MHz
Encoder
21-bit magnetic encoder
Encoder resolution
More than 2 million positions per revolution
USB refresh rate
1000 Hz
Steering range
90–2700 degrees
Base material
Die-cast aluminium alloy
Base weight
Approximately 2.9 kg
Input voltage
110–220 V AC to 12 V DC
Wheel diameter
280 mm
Wheel inputs
22 programmable inputs
Rev lights
10 configurable RGB LEDs
Pedal sensors
Contactless Hall effect
Advanced functions
360 Hz iRacing FFB, Wheel LFE, FFB interpolation and Game FFB Decoupling
Platform
Windows PC
What's in the box?
- MOZA R5 Pro Direct Drive Wheel Base
- MOZA ES Lite Steering Wheel
- MOZA SR-P Lite2 throttle and brake pedals
- Desk clamp
- Power adapter and power cable
- USB connection cable
- Toolkit and user documentation supplied with the bundle
Frequently asked questions
Does the R5 Pro bundle support 360 Hz force feedback in iRacing?
MOZA states that the R5 Pro platform supports native iRacing integration with 360 Hz high-frequency force feedback and Wheel LFE. The required software and in-game settings must still be configured correctly.
What do FFB interpolation and Game FFB Decoupling do?
Interpolation smooths the transition between adjacent feedback samples. Game FFB Decoupling separates the game signal into adjustable components, allowing finer control over individual force-feedback effects.
Is the R5 Pro bundle compatible with PlayStation or Xbox?
The official bundle information specifies Windows PC use and does not claim PlayStation or Xbox support.
Is a clutch pedal included?
No. The supplied SR-P Lite2 set contains throttle and brake pedals. The clutch pedal and performance kits are optional products.
Can the bundle be mounted to a desk?
Yes. A desk clamp is included. Use a rigid desk that can safely handle the movement and forces of a 6 Nm direct-drive base.
