A bucket seat is only as useful as the mounting stack beneath it. For a sim rig, that stack usually consists of the seat, side mounts, an optional slider and the cockpit’s seat rails or crossmembers. This guide explains where the Sparco 004902 steel side mounts, Sparco bucket-seat bracket set and Sparco seat slider fit—and why you should verify every hole pattern instead of relying on “universal” wording.
Understand the four layers
- Seat shell: a side-mounted bucket seat has threaded inserts on its left and right sides.
- Side mounts: one bracket sits on each side of the seat and provides height and tilt positions.
- Slider or fixed base: a slider adds fore-aft adjustment; a fixed connection prioritises minimum height and rigidity.
- Cockpit frame: crossmembers or a seat plate connect the assembly to the rig.
Bottom-mounted reclining seats use a different path. They normally bolt from underneath to compatible runners or brackets and do not use side mounts unless the seat manufacturer explicitly provides that interface. Inspect the actual seat shell before buying hardware.

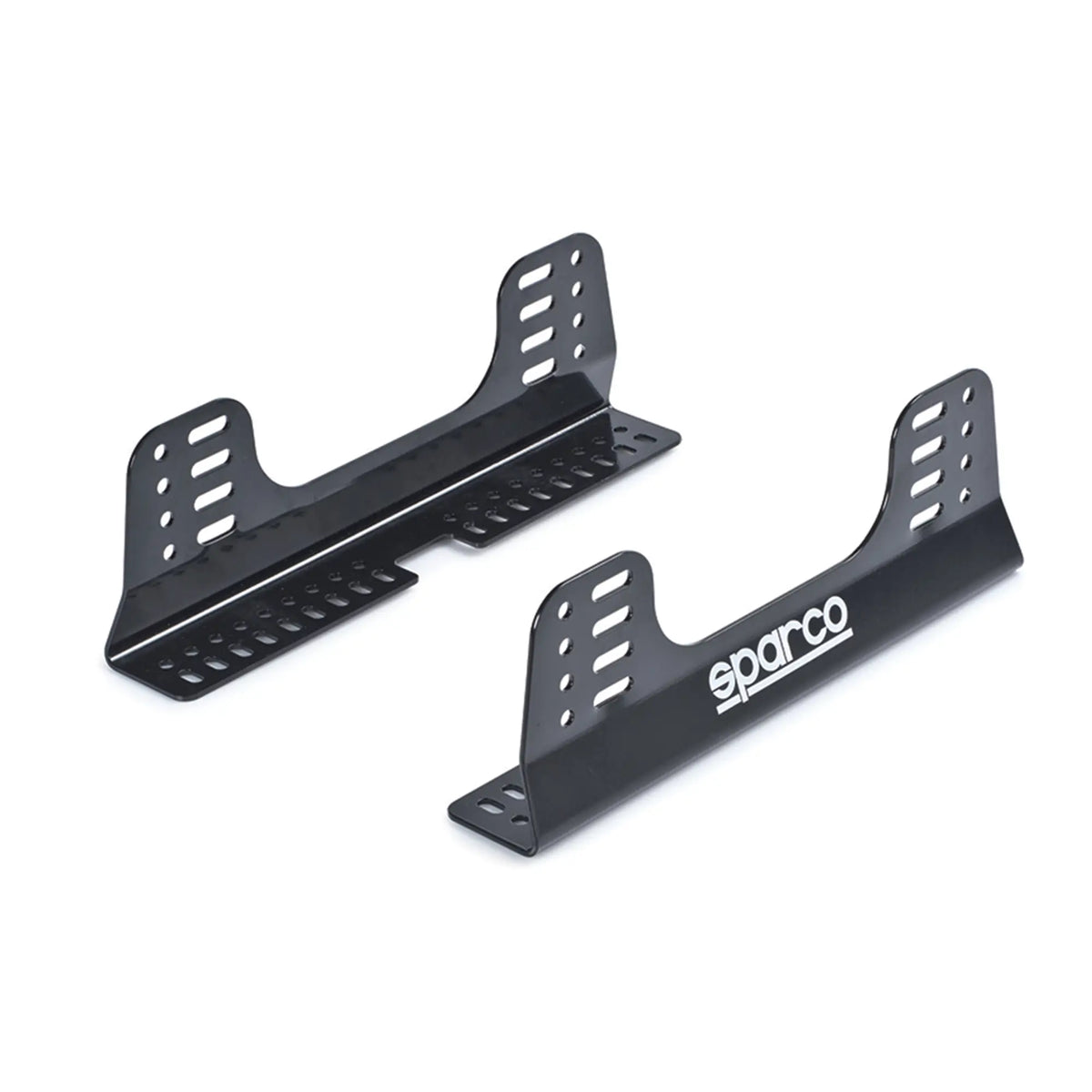

Sparco 004902 side mounts: verified dimensions
Sparco describes the 004902 set as two symmetrical, black powder-coated 3 mm steel brackets. The official specification gives a 290 mm longitudinal hole distance, a maximum length of 400 mm and more than 25 positioning options. M8 mounting hardware is included. These facts describe the bracket itself; they do not guarantee that every seat or cockpit has the matching width and holes.
For a sim rig, the many slots are valuable because they let you create a GT-style upright position or a more reclined posture while keeping the seat shell supported on both sides. Avoid extreme rake settings that force your neck forward toward the monitor. The correct angle keeps the pelvis stable, the shoulders supported and the steering-wheel rim clear of the thighs.
Bracket set versus side mounts
Product names can be confusing because “bracket set,” “side mount” and “seat base” are sometimes used interchangeably in retail descriptions. The Sparco bucket-seat bracket set is a two-piece steel mounting solution. Before combining it with another mount, compare its part number, orientation and hole pattern with the seat and frame.
Do not automatically stack two different pairs of side brackets. Every extra interface increases height and creates another place for movement. The target is the shortest complete load path that still provides the necessary adjustment: seat shell → appropriate mount → optional slider → rigid cockpit frame.
When to add the Sparco seat slider
A slider is worthwhile when several drivers share the rig or when access to the cockpit improves by moving the seat rearward. It also makes fine pedal-reach adjustments faster than moving an entire pedal plate. The trade-offs are extra installation height and a small increase in the number of joints in the structure.
The Sparco seat slider uses two parallel rails and a linking handle. Both rails must lock at the same position. Measure the spacing under your mounts and compare the holes with the cockpit crossmembers; slider rails are not a universal substitute for a missing adapter plate.
Recommended installation order
- Measure the seat. Record side-insert spacing, outside shell width and the desired hip height.
- Measure the cockpit. Record the distance and slot direction of the seat crossmembers or plate.
- Dry-fit the side mounts. Install all four seat-side bolts loosely in matching left/right positions.
- Set initial rake. Start with a moderate rearward tilt; confirm that the seat bottom does not contact the brackets.
- Assemble the slider separately. Keep both rails at the same index and connect the release handle without preloading one rail.
- Join mounts and slider. Use suitable washers and fasteners whose thread engagement is correct without bottoming out.
- Attach the stack to the rig. Centre it relative to the steering column and pedals before final tightening.
- Load-test and recheck. Sit down, operate the controls firmly, cycle the slider and inspect every fastener after the first sessions.
Alignment checks that prevent discomfort
Centre the seat on the steering column, not merely between the outer cockpit profiles. A lateral offset twists the pelvis and shoulders on every lap. Set the seat far enough back that maximum brake pressure does not fully straighten the knee. At the wheel, the elbows should retain a bend while the shoulders remain against the backrest.
Next check eye height and monitor position. Changing a bracket slot can move the driver both vertically and horizontally, so revisit wheel and pedal distance after every rake adjustment. If the front seat edge creates pressure behind the thighs, reduce rearward tilt or raise the pedals rather than sliding farther away.
Important distinction: sim rig versus road or competition car
This article covers installation in a stationary simulator. A real vehicle introduces crash loads, homologation rules, vehicle-specific bases, belt geometry and legal requirements. Do not use a sim-rig mounting interpretation as instructions for a road or competition car. For vehicle installation, follow Sparco’s documentation and qualified motorsport guidance.
The official Sparco 004902 product page confirms the bracket material, dimensions, adjustment positions and included M8 hardware. Use that page together with the documentation for the exact seat and cockpit.
Frequently asked questions
Do I need side mounts for every Sparco seat?
No. Side-mounted bucket seats need compatible side brackets; bottom-mounted reclining seats normally use a different mounting path.
Can I install the bucket seat without a slider?
Yes. A fixed mount is lower and simpler. Add a slider when adjustability or cockpit access outweighs the extra height.
Are the 004902 brackets universal?
They are widely adaptable, but you must still verify seat inserts, width, cockpit holes and fastener requirements.
Why does my slider bind?
The usual causes are non-parallel rails, uneven mounting surfaces or a linking handle that preloads one release mechanism.
