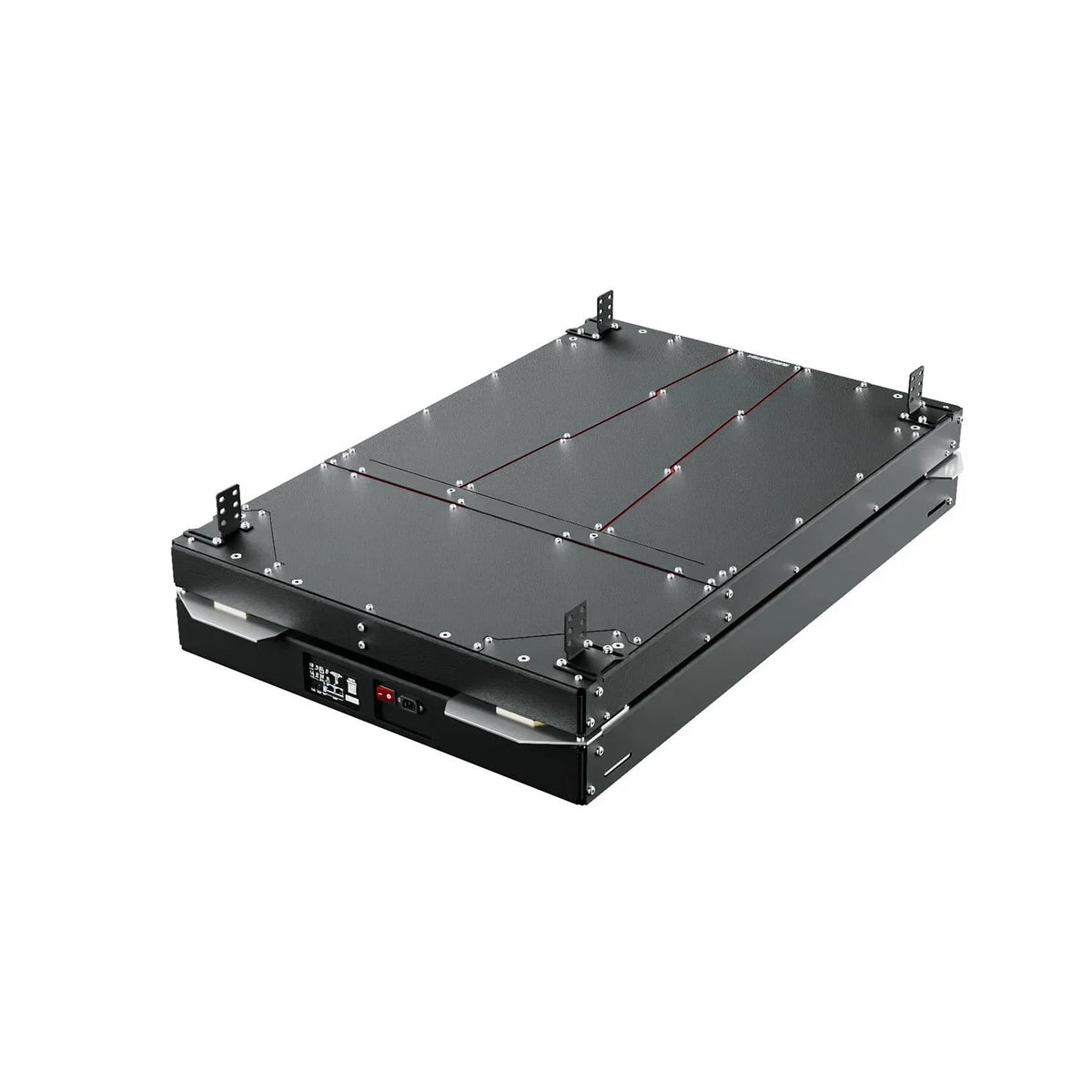

New to the Sim Race Webshop range: the Qubic System QS-TP1 Traction Pro adds two kinds of motion beneath a compatible cockpit: fore-and-aft surge and rear-end yaw. It is aimed at drivers who want braking, acceleration and traction loss to be felt through the whole rig. This guide explains what it does, what is needed to install it, and how it can grow with a Qubic motion setup.
What does the QS-TP1 add to a simulator?
Surge moves the cockpit lengthwise to cue acceleration and braking. Yaw rotates the rear of the rig around a front pivot, so a slide can be felt as the car begins to step out. Qubic rates the platform at up to 400 mm/s and 0.6 G, with less than 8 ms stated response latency. Its travel is ±30 mm in surge and ±8° in yaw. These are platform specifications; the sensation in a particular game depends on available telemetry and the motion profile you choose.
Check the cockpit before ordering
Qubic specifies aluminium-profile cockpits between 540 and 756 mm wide. Supplied adapter brackets cover two mounting orientations. Measure the outer width of the cockpit where it will attach and plan space for the platform's movement. The QS-TP1 measures 127.1 × 85 × 27.3 cm and weighs about 86 kg with the actuator setup, so this is a permanent-rig project rather than a compact wheel-stand accessory.
For a standalone installation, mount the compatible cockpit directly above the platform. The separate QS-MC6 communication set is required when the QS-TP1 is your only Qubic motion device; it is not included with the platform. Qubic Manager on PC is needed for setup and supported-game telemetry. Confirm your power supply and circuit requirements against the official QS-TP1 installation manual before installation.
Self-assembly kit or pre-assembled platform?
Both options provide the same motion concept. The kit requires you to build and calibrate the platform following Qubic's instructions. The pre-assembled option reduces the mechanical build, but you still install your cockpit and complete the first calibration. Qubic recommends planning a clear work area, measuring carefully and following its powered geometry and motion checks in order. Select the required version on the QS-TP1 product page.
How to expand a QS-TP1 setup
A QS-TP1 can work underneath a cockpit on its own, then accept a Qubic vertical actuator setup later. The Qubic QS-220 3DOF motion system is one upgrade route: it adds vertical and body-motion cues while the QS-TP1 continues to provide surge and yaw. The Qubic QS-BT1 belt tensioner adds harness tension at the driver's shoulders and chest, a different sensation from moving the cockpit. Check the mounting configuration and controller plan with each expansion.
Who should choose the QS-TP1?
Choose it if you already have, or are planning, a permanent aluminium-profile cockpit and want physical cues for braking and oversteer. It also makes sense if you plan to build a broader Qubic motion system in stages. Check room space, cockpit width, electrical requirements and controller needs before placing the order. At publication, the SRW listing shows no on-hand stock; consult the live product page for current availability and options.
Frequently asked questions
Can I use the QS-TP1 without a QS-220?
Yes. A compatible cockpit can be mounted directly to the QS-TP1 for surge and yaw. A QS-MC6 set is required if it is your only Qubic motion device.
Will it fit any aluminium-profile cockpit?
No. Qubic specifies a 540–756 mm cockpit width range and two bracket orientations. Measure the actual attachment width and check the manual.
Is the QS-BT1 included?
No. The QS-BT1 is a separate belt-tension upgrade.
Does every game deliver the same motion effects?
No. Available cues depend on game telemetry and the profile used in Qubic Manager.
Technical references: Qubic System product information and installation documentation.
