Truck and road-car simulation feels more natural when indicator, wiper, lighting and cruise controls sit around the steering column. The MOZA Racing Multi-Function Stalks add those controls to a PC rig, but the mounting route depends on the wheelbase. Here is a practical way to choose between direct mounting and the MOZA Multi-Function Stalks Adapter Plate.
What the stalks actually add

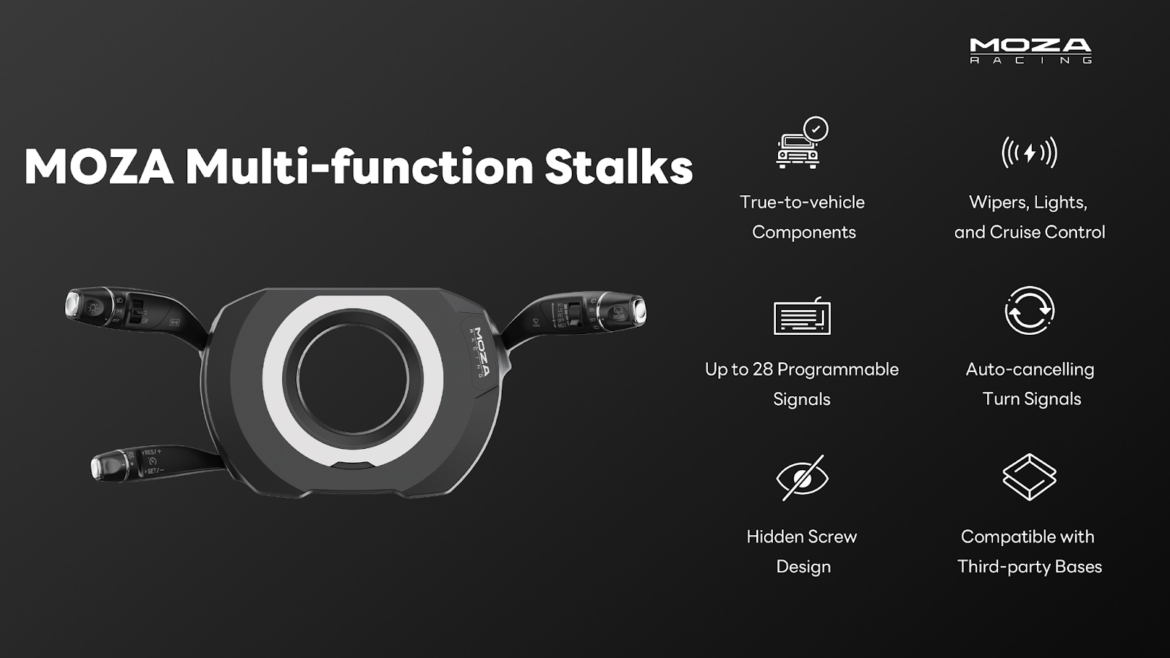

MOZA specifies 28 programmable switches, including controls for indicators, wipers, headlights and cruise functions. Its auto-cancelling turn signal mechanism mimics the return action after a turn. The stalks include steel brackets and aluminium extension rods, so they can be positioned around the wheel rather than at an unrelated spot on the cockpit. Standard and inverted mounting are both described by MOZA.
Think about the game you will use: controls are configurable inputs, so the simulator must let you map the relevant functions. A stalk does not make every game implement automatic lights or cruise control. Test and map each input after installation.
Which mounting route fits your base?
MOZA base with front mounting holes
MOZA says the stalks mount directly on compatible MOZA bases with front mounting holes. Before ordering, inspect the front of your exact base, the distance to the wheel rim and available space for the return mechanism. Follow MOZA's fastening sequence and adjust the extension rods so the levers are reachable without hitting paddles or other controls.
Earlier R16/R21 or selected third-party base
The separate Multi-Function Stalks Adapter Plate is designed for earlier MOZA R16 and R21 bases without front mounting holes. MOZA also describes broad third-party support, but that is not a guarantee for every base or cockpit. Check the adapter's mounting geometry, shaft/QR clearance and manufacturer instructions for your specific hardware. The plate is a mechanical mounting aid; it does not replace the need to connect and configure the stalk inputs.
Connect and configure on PC
- Mount the stalk assembly loosely and seat yourself in the normal driving position.
- Set indicator and wiper reach, then rotate the wheel through its full range to check clearance.
- Connect the stalks through a compatible MOZA base or directly to a Windows PC via USB, as supported by MOZA's product guidance.
- Use MOZA Pit House to confirm that each switch registers, then assign controls inside the game.
- Test the auto-cancelling indicators in a safe session and tighten the brackets after the final ergonomic check.
If you use a third-party wheelbase, the direct PC connection makes the input side independent of that base, while the mounting arrangement still needs to be checked. Keep the USB cable clear of steering rotation and seat adjustment.
A practical mapping plan for truck and road sims
Start with functions you reach for in every drive: left/right indication, high beam and wipers. Add cruise-control functions only if the specific simulator exposes inputs for them. A game's controls menu may use different names for a toggle, momentary press or repeated increment, so test one lever at a time and keep a short record of the mapping. This matters when you switch between two truck titles or between truck and road-car simulation.
For a truck rig, set the wheel at a comfortable height before adjusting stalk reach. A larger rim can change how much clearance remains at the levers, so test steering at full lock, the paddles and any nearby dashboard or screen. For a road-car rig, angle the stalks so your fingers can reach indicators without taking your hands completely off the wheel. Retighten only after a seated test.
Common installation checks
- The stalks are detected but the game does nothing: confirm each input in Pit House, then map it in the game's own control menu. Some vehicles or game modes may not implement every listed function.
- The lever is too close to the rim or paddle: revisit the bracket position and extension rods before tightening. Check both normal and inverted configurations if the rig layout is unusual.
- An earlier R16/R21 has no front mounting holes: use the dedicated adapter path described by MOZA. Do not drill the base or assume a current-generation product photo represents an older chassis.
- Third-party base: verify the mechanical adapter fit separately from the USB input path. A PC connection does not prove the bracket physically fits.
The adapter plate has no effect on the steering wheel's force feedback. It simply lets the stalk assembly occupy the intended position where direct front mounting is unavailable. Keep space for the USB cable and the auto-cancelling return block when planning the fit.
Build a truck-simulation setup
Pair the stalks with a large truck wheel when realistic hand position matters. The MOZA TSW Truck Wheel + Multi-Function Stalks Bundle combines a 400 mm truck wheel and the stalk controls, but a compatible wheelbase and pedals are separate requirements unless another bundle explicitly includes them. The stalks can also be a useful road-car addition without changing your wheel.
Buying recommendation
Choose the standalone stalk set if your existing base has a confirmed direct mounting path. Add the adapter plate for the earlier R16/R21 mounting situation described by MOZA, or only after verifying a third-party base. Choose the TSW and stalk bundle if you are intentionally building a truck-focused PC rig and still need the larger wheel.
Frequently asked questions
Do the stalks work only with a MOZA wheelbase?
No. MOZA describes direct PC USB connection and third-party base mounting with suitable brackets. Mechanical fit must still be checked.
Do I always need the adapter plate?
No. It addresses older R16/R21 bases without front holes and certain third-party arrangements. Bases with supported front mounting holes can use direct mounting.
Will these controls work on consoles?
This guide covers the verified PC setup. Do not assume console support from a product tag or from the wheelbase alone; check MOZA's current platform guidance and the individual game.
Installation and compatibility checked against MOZA's stalk specifications and MOZA's adapter details.
